I think hydrogen makes the most sense in buses, semis, RVs, buses, ships, etc. It's not ideal for personal transport (cars). That's my North American perspective. I do think it may make sense in Japan for personal transport because their infrastructure is different.

Will1991

Will1991

Moderator
Messages
1,589
Reactions
3,232
About the ESU on the new eTNGA platform:

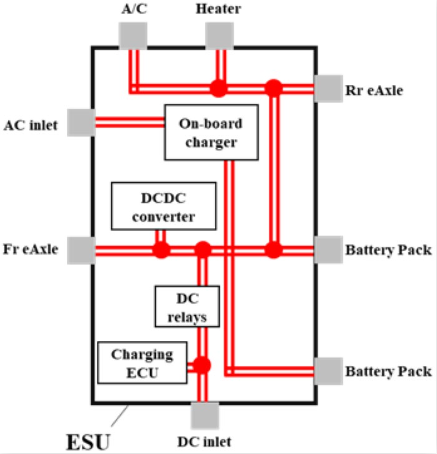

-> Electric diagram:

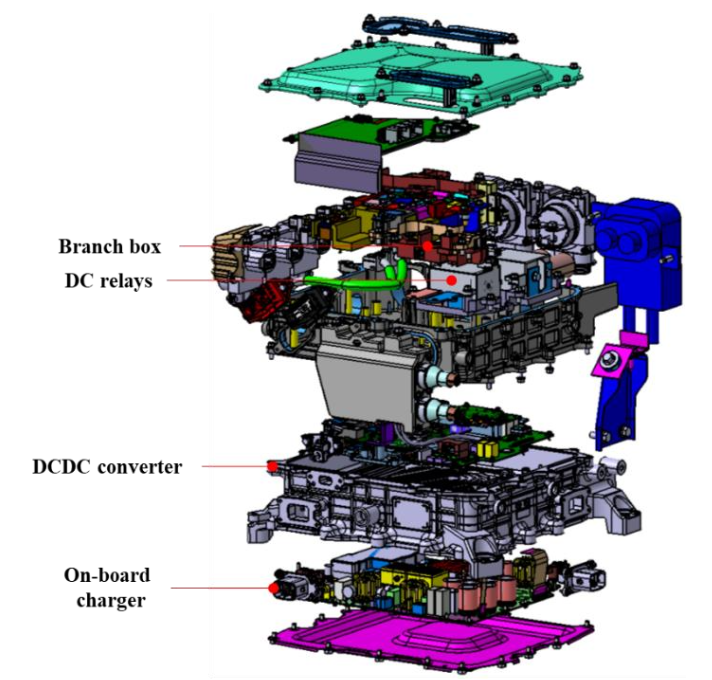

-> How it looks:

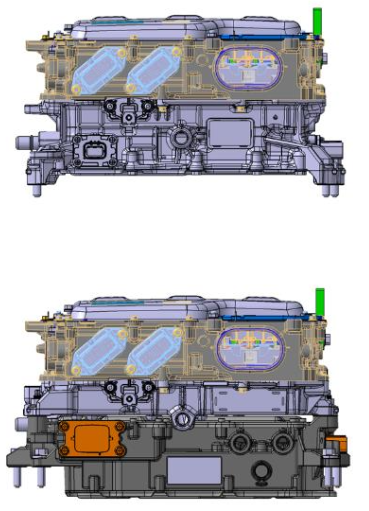

-> Comparasion between the normal 7kW AC charger and the add-on (see component bellow) 11kW charger (TMC is expecting only 20% going for he 11kW):

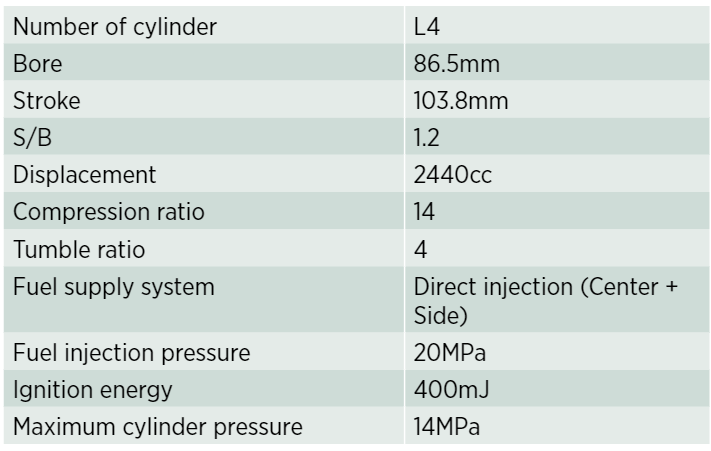

Another new thing, is that TMC is testing a 50% thermal efficiency T24 modified engine!
Disclaimer: It may need to burn H2 to comply with NOx regulations.

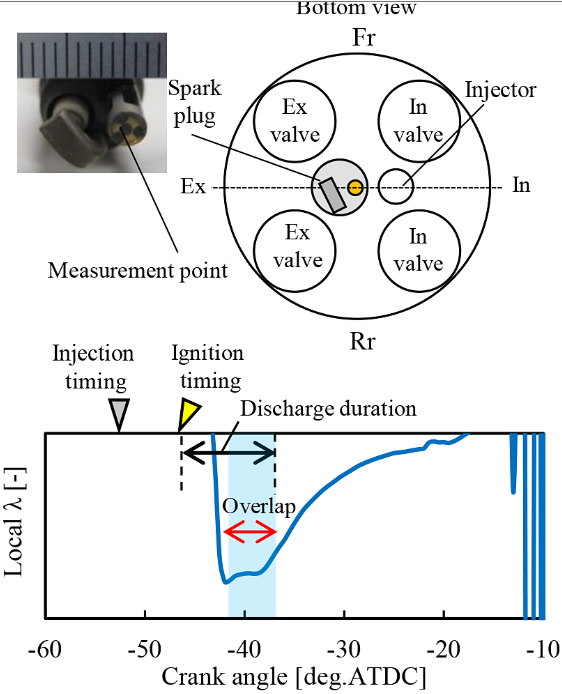

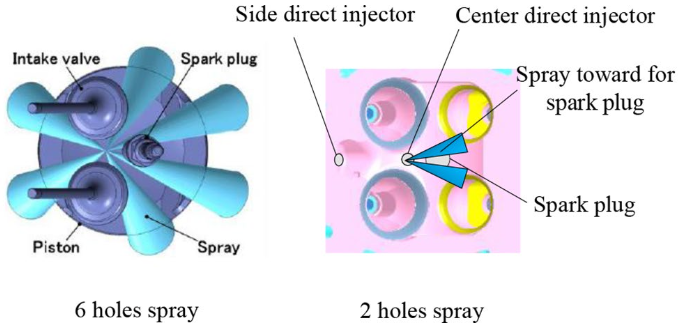

It uses two direct injectors:

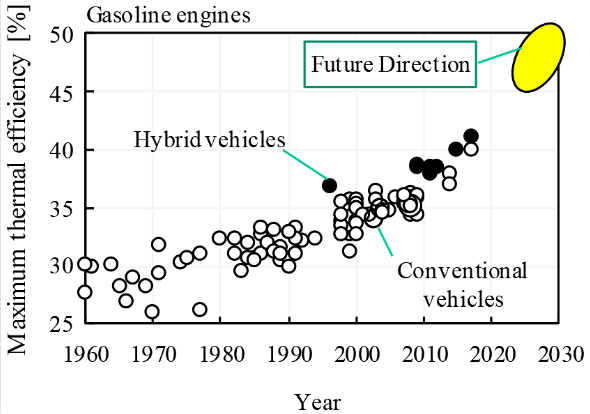

And this is where TMC wants to go:

S

ssun30

Expert
Messages
3,551
Reactions
7,796
Looks like the 2025 46.5% engine is pushed back for a new 50% engine.

Is it turbocharged lean burn or electrically supercharged?

S

ssun30

Expert
Messages
3,551
Reactions
7,796
NomadDan said:
So are we talking a revised T24, or is this a whole new engine?
Click to expand...
It will change so much it might as well be a new engine.

Will1991 said:
As far as I know, there isn't any turbocharger developed for this kinds of lambda values (>2.5).
For this they're using a supercharger driven by a external motor.
Click to expand...
Electric supercharger is kind of cheating though. The power consumed by the motor doesn't count as a parasitic loss to the engine compared to say SkyActiv-X which achieves 45% but has losses in the belt-driven supercharger.

I wonder why they moved from the previous 1.5 S/B (75 x 112.5) 500cc cylinder back to 1.2 S/B 600cc cylinder with this design. Maybe the 500cc design had too small bore (75mm) to package to center injector?

A

Ali Manai

Follower
Messages
442
Reactions
535
Another thing to note this has no port injection and compression ratio is pretty high for a turbo engine so a supercharger might make sense

Will1991

Will1991

Moderator
Messages
1,589
Reactions
3,232
ssun30 said:
It will change so much it might as well be a new engine.


Electric supercharger is kind of cheating though. The power consumed by the motor doesn't count as a parasitic loss to the engine compared to say SkyActiv-X which achieves 45% but has losses in the belt-driven supercharger.

I wonder why they moved from the previous 1.5 S/B (75 x 112.5) 500cc cylinder back to 1.2 S/B 600cc cylinder with this design. Maybe the 500cc design had too small bore (75mm) to package to center injector?
Click to expand...

It’s pretty tight on the cylinder head:



S

sl0519

Admirer
Messages
562
Reactions
1,004
Gor134 said:
View attachment 7039

Found this while scrolling through Pinterest. Unfortunately extremely low-res tiny photo, and reverse-image search can't produce a source.

Design proposals of next-gen Lexus IS? The top-right especially looks like a next-gen IS.
Click to expand...

Upload it on CL and ask Carmaker1 what this is? I'm guessing it's just early design proposal of the heavily refreshed IS.

Gor134

Gor134

Admirer
Messages
940
Reactions
1,674
sl0519 said:
Upload it on CL and ask Carmaker1 what this is? I'm guessing it's just early design proposal of the heavily refreshed IS.
Click to expand...
Thanks, just uploaded it there! And the design language seems too wild and new to be the current "3.5IS" I feel.. ie, the RZ-esque taillights and new-style lower grille valances.. who knows !

Gor134

Gor134

Admirer
Messages
940
Reactions
1,674
sl0519 said:
Upload it on CL and ask Carmaker1 what this is? I'm guessing it's just early design proposal of the heavily refreshed IS.
Click to expand...
He responded.. turns out yeah it is an early design proposal but for the Toyota Mirai, based on the repurposed 5GS program.. explains why some of them look so similar to a Lexus design, and Toyota toned down those details a lot to look more Toyota.

Gor134

Gor134

Admirer
Messages
940
Reactions
1,674
No word on when we'll hear more about the future of Lexus sedans beyond the ES yet huh? :/

Gor134

Gor134

Admirer
Messages
940
Reactions
1,674
F1 Silver Arrows said:
IS should have been released in 2024 but looks to be in 2025.

LS? Now that's a mystery.
Click to expand...

You think we getting an EV IS for next generation? I mean, the current gen likely has another 2 years MAX and then it's out. Haven't had any trademark filings yet to imply anything new or EV like "IS450e" or whatnot :/

L

Levi

Expert
Messages
2,870
Reactions
3,307
There are three confirmed electric sports cars, the Porsche and Alpine and Lotus twins. Makes sense for Toyota to have one.
